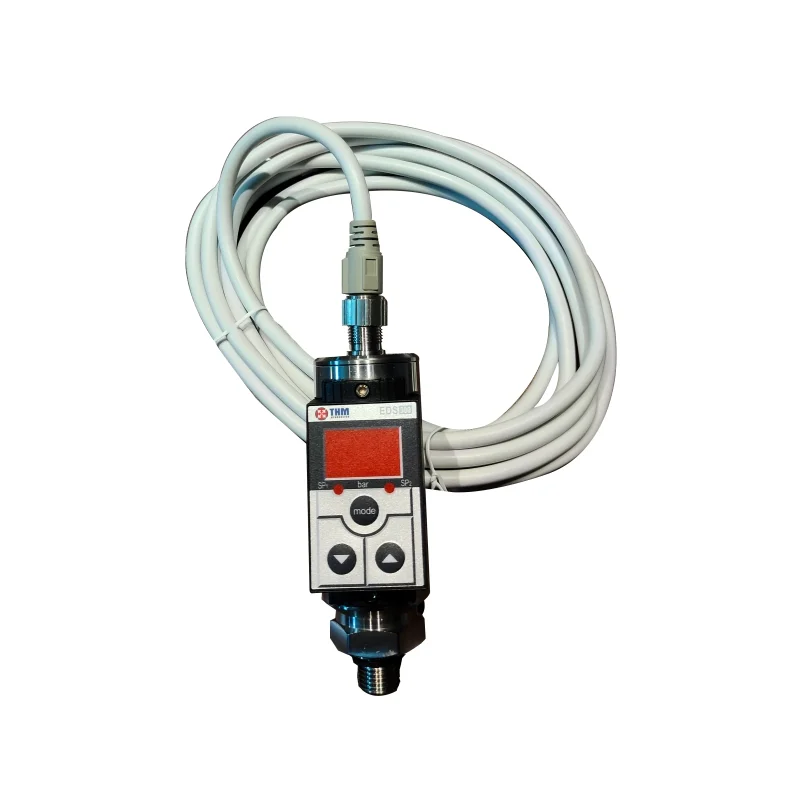

Experience reliable, high-precision pressure management with the THM TEDS 3xx Series Electronic Pressure Switch. Available at Thm Hydraulics, this compact, state-of-the-art instrument integrates a highly visible digital display with advanced electronic switching capabilities. Engineered with a robust thin-film strain gauge bonded to a stainless steel membrane, it delivers unflinching accuracy under extreme workloads up to 400 bar. Whether you require high switching frequencies or constant, repeatable switching accuracy in demanding hydraulic circuits, the TEDS 3xx provides the ultimate digital interface to monitor, program, and control your machine's vital fluid power limits.

Core Technical Specifications:-

• Component Architecture: Compact Electronic Pressure Switch with Digital Display
• Model Series: THM TEDS 3xx Series
• Maximum Operating Pressure: Up to 400 bar
• Operating Voltage: 20…32 VDC
• Output Signals: 4-20mA Analogue / Configurable Switching Outputs
• Sensor Technology: Thin-film strain gauge on a stainless steel membrane

Key Features & Engineering Advantages

• High-Visibility Digital Display: The integrated screen provides immediate, crystal-clear readouts of real-time system pressure. Operators and technicians can monitor critical hydraulic limits at a glance without relying on fragile, hard-to-read analog gauges.
• Advanced Membrane Technology: The measurement cell utilizes a highly sensitive thin-film strain gauge permanently integrated into a rugged stainless steel membrane. This guarantees exceptional long-term stability, rapid response times, and supreme resistance to violent pressure spikes.
• Highly Configurable Outputs: Highly adaptable to your specific control architecture. Available in four distinct models featuring either one or two programmable switch points. Both configurations can be specified with an additional 4...20mA analogue output for seamless integration into modern PLCs and SCADA networks.
• Intuitive Keypad Calibration: Entirely eliminates the need for manual set-screws or external calibration tools. Technicians can precisely adjust switch points, hysteresis, switching delay times, and N/O (Normally Open) or N/C (Normally Closed) output functions directly via the front-facing keypad.
• Constant Switching Accuracy: Engineered specifically to thrive in advanced hydraulic applications that demand exceptionally high switching frequencies and unwavering accuracy, ensuring your automated safety and logic systems never miss a beat.

Ideal Industry Applications:-

The digital precision and rapid keypad programming of the TEDS 3xx Series make it a mandatory diagnostic and control component for:

• Automated Industrial Manufacturing: Providing strict, high-frequency pressure monitoring for the rapid clamping and pressing cycles of plastic injection molding machines and heavy metal-forming presses.
• Heavy Mobile Hydraulics: Serving as the rugged, highly visible digital safety switch for the main drives and load-holding circuits on modern tracked excavators and high-capacity cranes.
• Precision Hydraulic Test Benches: Delivering the exact, repeatable switching accuracy and dual-output signals required for automated fluid power testing facilities and quality control laboratories.
• Process Control Systems: Acting as the primary digital pressure gateway for centralized hydraulic power packs and continuous industrial process equipment.
