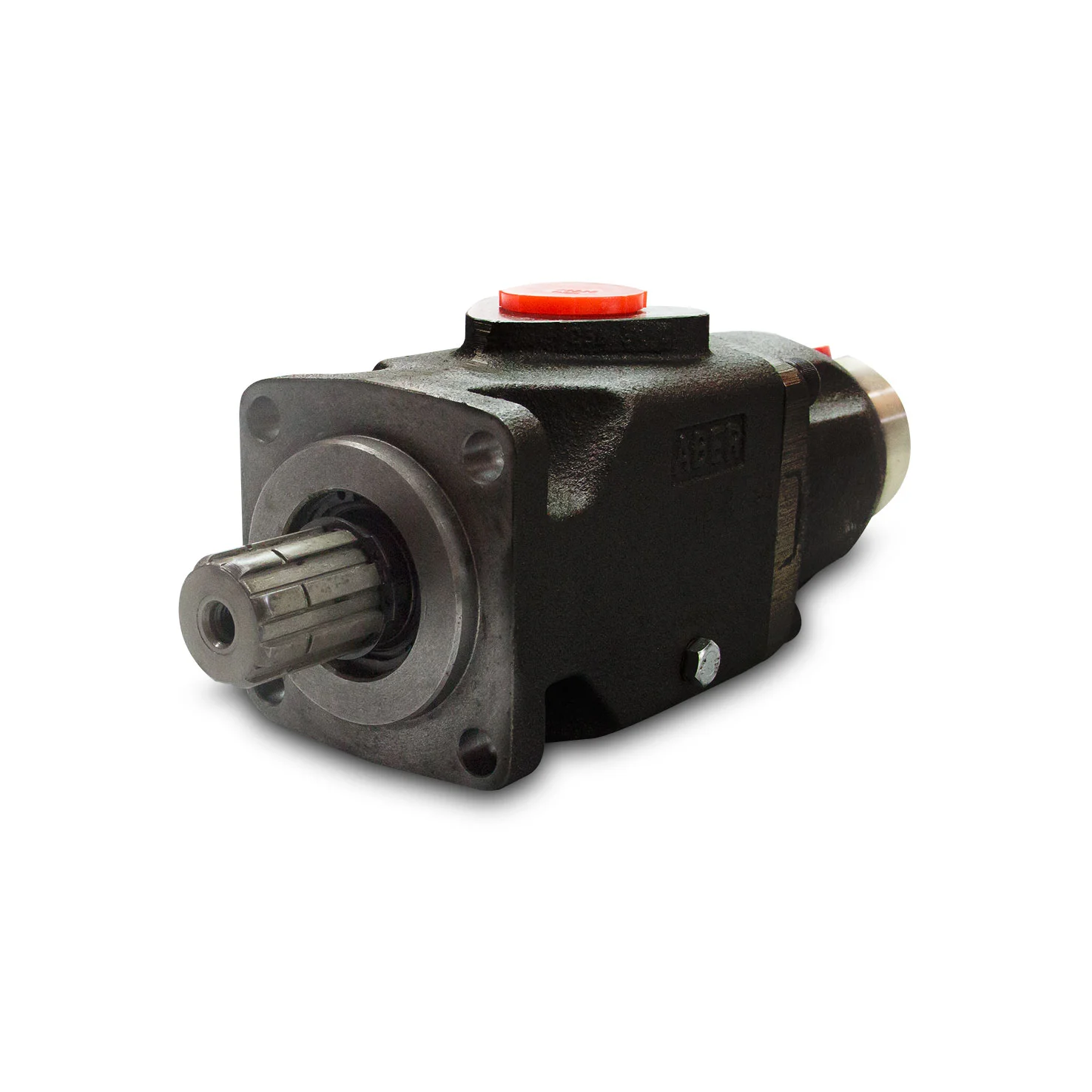

ABER – BHD Oil Hydraulic Pump Axial Piston
Deliver unparalleled, dual-flow hydraulic power directly from your vehicle's transmission with the ABER BHD and BI Series Axial Piston Pumps. Available exclusively at Thm Hydraulics, these highly advanced fixed-displacement pumps are engineered to supply massive fluid force to heavy mobile equipment. Available in highly efficient double-displacement sizes (20+20, 25+25, and 30+30), they are capable of sustaining operating pressures up to 300 bar and brutal peak pressures of 350 bar. Designed for direct assembly into standard Power Take-Off (PTO) units, the ABER series combines an incredibly compact, lightweight footprint with robust precision. Whether operating in freezing environmental temperatures or demanding rapid changes in rotation, this pump delivers the low-noise, high-performance flow required to dominate the mobile hydraulics sector.
Core Technical Specifications
- Component Architecture: Single & Double Fixed Displacement Axial Piston Pump
- Model Series: ABER BHD / BI Series
- Double Displacement Sizes: 20+20, 25+25, 30+30
- Volumetric Range: 25 to 172 cm³/rot
- Operating Pressure: Up to 300 Bar (Peak Pressure: 350 Bar / Max Rating: 400 Bar)
- Maximum Output: 45 LPM at maximum rotation
- Rotational Speed: 200 RPM (Minimum) to 2000 RPM (Maximum)
Key Features & Engineering Advantages:-
- Direct PTO Integration: Specifically engineered to be assembled directly into your commercial vehicle's PTO unit (excluding unsupported two-shaft PTOs), eliminating the need for complex intermediate mounting brackets and external drive shafts.
- Fail-Safe Bi-Directional Rotation: Features a highly advanced internal architecture that allows operators and mechanics to easily change the pump's direction of rotation completely safely, with zero risk of breaking the pump's internal components.
- Exceptional Power-to-Weight Ratio: Delivers up to 45 LPM of relentless dual-flow hydraulic power while maintaining an incredibly lightweight and small-dimensional footprint, preserving your vehicle's payload capacity.
- Extreme Climate Resilience: Built with robust, high-precision metallurgy designed to maintain optimal fluid flow and prevent seal shrinkage even when operating in severely low environmental temperatures.
- Acoustic Superiority: Precision-machined pistons and optimized porting guarantee exceptionally low noise generation, improving operator comfort and meeting strict urban noise compliance regulations.
Ideal Industry Applications:-
The direct PTO mounting and massive peak pressure capabilities of the ABER BHD Series make it the mandatory hydraulic heart for:
- Heavy Commercial Trucking: Powering the primary hydraulic circuits on heavy articulated dump trucks, roll-off refuse carriers, and heavy-duty tow trucks.
- Mobile Cranes & Lifting: Providing the dual-flow precision required to simultaneously operate the boom extension and winch circuits on truck-mounted knuckle boom cranes.
- Forestry & Agricultural Equipment: Driving the demanding, high-pressure auxiliary implements on heavy timber loaders and off-grid agricultural harvesters operating in freezing climates.
- Snow & Ice Management: Thriving in sub-zero temperatures to power the heavy-duty plow hydraulics and salt-spreader augers on municipal winter maintenance fleets.
Why Choose the ABER BHD & BI Series?
- Dual-Flow Efficiency: The 20+20, 25+25, and 30+30 configurations allow you to power two independent hydraulic circuits simultaneously from a single PTO drive.
- Mistake-Proof Installation: The changeable rotation design entirely prevents catastrophic pump destruction if a technician accidentally wires or plumbs the system backward.
- Uncompromising Mobile Power: Packs up to 350 bar of peak hydraulic force into a remarkably light, space-saving casing.
