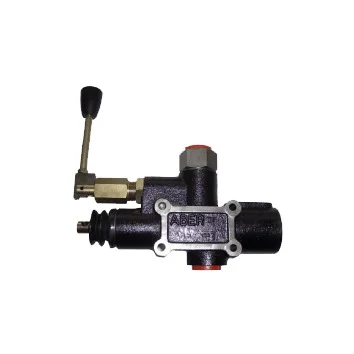

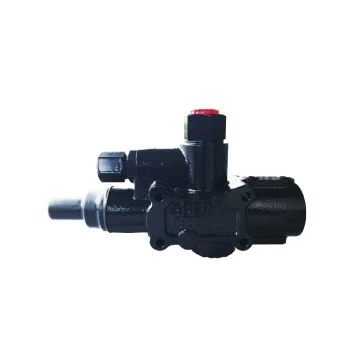

ABER – Tipping Valves DTCA,VVLR,DT,VVP
Take absolute control of your heavy-duty dump trucks and articulated tippers with the ABER Series Tipping Valves. Specifically engineered to manage the brutal fluid dynamics of massive lifting cylinders, these heavy-duty valves—including the DTCA, VVLR, DT, and VVP models—deliver uncompromising reliability on the harshest job sites. Capable of routing a massive 250 liters per minute (LPM), they sustain extreme continuous operating pressures of 400 bar and can safely absorb violent peak pressures up to 500 bar. Designed to integrate seamlessly with ABER's ABCD air commands, these valves provide operators with highly precise, progressive descent control, ensuring that even the heaviest, most unbalanced payloads are lowered smoothly and safely.
Core Technical Specifications:-
- Component Architecture: High-Pressure Pneumatic Tipping Valve
- Model Series: ABER DTCA, VVLR, DT, and VVP
- Maximum Peak Pressure: 500 Bar
- Standard Operating Pressure: Up to 400 Bar
- Maximum Flow Rate: 250 LPM
- Pneumatic Integration: Fully compatible with ABER ABCD air commands
Key Features & Engineering Advantages:-
- Progressive Descent Control: When paired with the specialized ABER ABCD air commands, the valve allows operators to proportionally meter the hydraulic fluid during the lowering cycle. This prevents sudden drops, extending the lifespan of the chassis and the lifting cylinder.
- Massive 250 LPM Flow Capacity: The optimized internal bore design allows a staggering 250 liters of fluid to pass through the valve per minute. This ensures rapid lifting cycles and prevents the fluid starvation that causes sluggish bed actuation.
- Extreme 500-Bar Resilience: Built with high-strength housing materials to safely contain continuous 400-bar operations and absorb sudden, violent 500-bar pressure shocks without structural deformation or seal failure.
- Strict Installation Protocol for Longevity: Engineered for a highly specific, secure mounting process to prevent housing stress. The valve must be tightened using only three bolts (leaving the "D" hole empty), with a maximum soft-tightening torque of exactly 20 N.m.
Ideal Industry Applications:-
The massive flow capacity and progressive descent control make the ABER Tipping Valve Series the mandatory hydraulic hub for:
- Heavy Commercial Trucking: Serving as the primary lifting and lowering control valve for heavy articulated dump trucks, rigid haulers, and high-capacity tipping trailers.
- Construction & Earthmoving: Providing safe, controlled payload dumping for heavy-duty site dumpers and aggregate transport vehicles.
- Waste Management Fleets: Delivering the reliable, high-pressure fluid routing required for large roll-off refuse carriers and tipping transfer trailers.
- Mining & Quarrying: Ensuring the massive, heavily loaded cylinders on off-highway mining trucks operate safely and efficiently under extreme pressures.
Why Choose the ABER Tipping Valve Series?
- Uncompromising Load Safety: The progressive descent functionality ensures your operators never accidentally slam a heavy dump bed down onto the truck frame.
- Sustain Peak Efficiency: Don't choke your hydraulic system; the massive 250 LPM flow rating ensures your heaviest multi-stage cylinders actuate rapidly.
- Built for the Extremes: Rest easy knowing your tipping valve can effortlessly handle violent 500-bar pressure spikes when a loaded truck hits a harsh pothole or uneven terrain.
