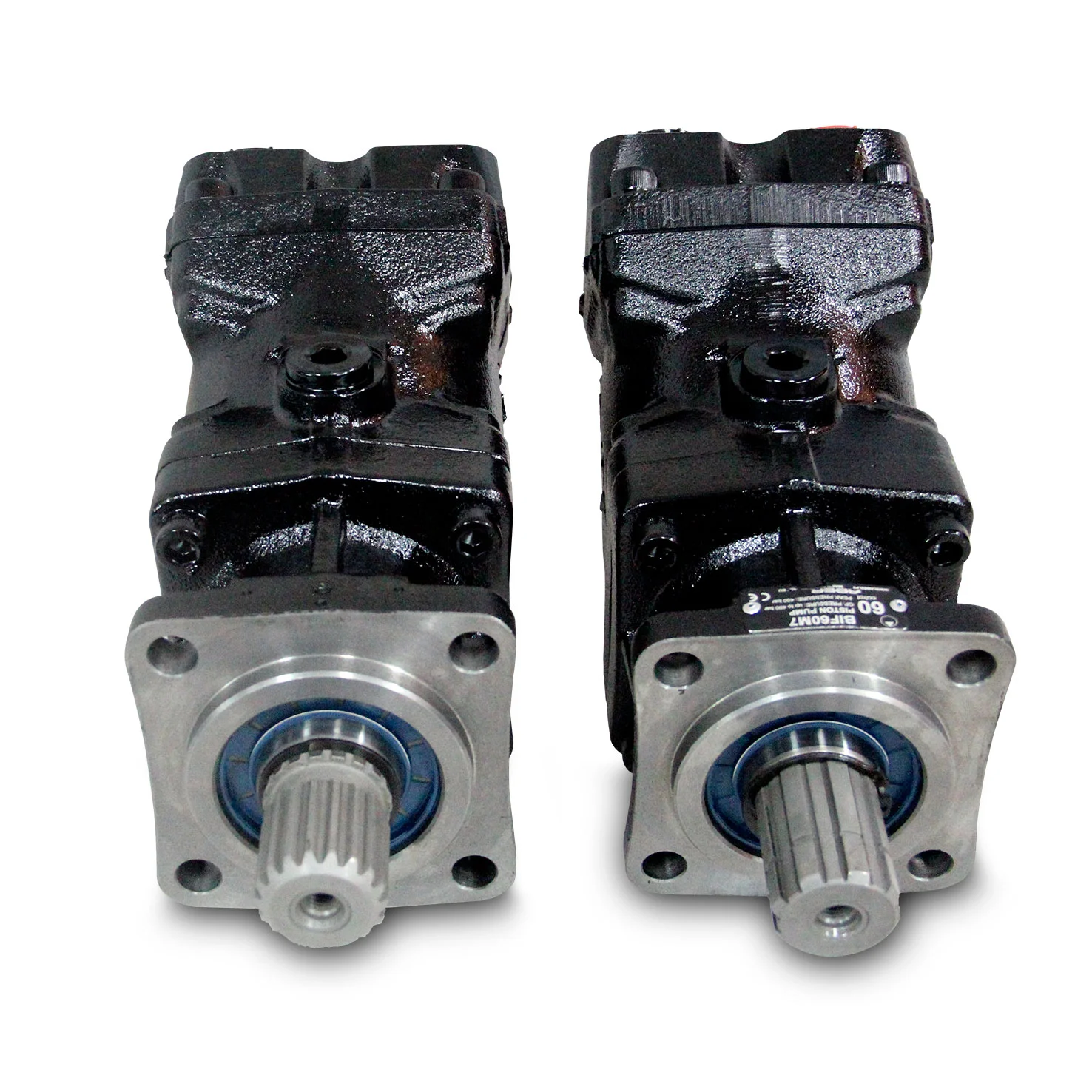

ABER – BIF Iron Cast Bent Axis Piston Pumps
Unleash relentless, heavy-duty hydraulic power with the ABER BIF Series Iron Cast Bent Axis Piston Pumps. Available exclusively at Thm Hydraulics, this exceptionally rugged series is forged from high-strength cast iron, making it the ultimate fluid power solution for the most punishing mobile and industrial environments. Covering a highly versatile range of models (17M, 25M, 30M, 40M, and 50M), these pumps are engineered to sustain massive operating pressures up to 400 bar, with an astounding peak pressure threshold of 450 bar. Capable of hitting rotational speeds up to 2500 RPM and designed for direct assembly into standard Power Take-Off (PTO) units, the BIF Series combines iron-clad durability with a surprisingly compact, low-noise architecture.
Core Technical Specifications:-
- Component Architecture: Iron Cast Bent Axis Piston Pump (Fixed Displacement)
- Model Series: ABER BIF Series (17M, 25M, 30M, 40M, 50M)
- Maximum Operating Pressure: Up to 400 Bar
- Maximum Peak Pressure: 450 Bar
- Maximum Operating Rotation: 2500 RPM
- Mounting Integration: Direct PTO assembly compatible
Key Features & Engineering Advantages
- Cast Iron Resilience: Unlike standard aluminum housings, the heavy-duty iron cast construction is specifically engineered to absorb the violent mechanical shocks, extreme vibrations, and aggressive pressure hammering found in heavy commercial trucking and earthmoving.
- Fail-Safe Bi-Directional Rotation: Features an advanced internal design that allows technicians to change the pump's direction of rotation safely and easily, completely eliminating the risk of breaking internal components due to accidental reverse-wiring.
- Direct PTO Integration: Streamlines your vehicle's drivetrain by assembling directly into your commercial truck's PTO unit (excluding unsupported two-shaft PTOs), saving space and reducing the need for vulnerable external drive shafts.
- Extreme Climate & Acoustic Performance: Precision-machined to maintain exceptional volumetric efficiency in freezing, low-temperature environments while guaranteeing incredibly low noise generation during high-RPM operations.
- Optimized Power-to-Weight Ratio: Despite its rugged iron casting, the pump maintains surprisingly small dimensions and a manageable weight, preserving your vehicle's critical payload capacity while delivering uncompromising fluid force.
Ideal Industry Applications
The massive 450-bar peak pressure and cast-iron durability of the ABER BIF Series make it the mandatory hydraulic heart for:
- Heavy Commercial Trucking: Driving the primary hydraulic circuits on massive articulated dump trucks, roll-off refuse carriers, and heavy-duty recovery wreckers.
- Extreme Forestry & Logging: Supplying the relentless, high-pressure flow required for heavy timber loaders, delimbers, and off-grid forestry harvesters operating in freezing climates.
- Mobile Cranes & Lifting: Providing the precise, high-pressure muscle needed to safely operate the boom extension and winch circuits on truck-mounted knuckle boom cranes.
- Heavy Municipal Fleets: Thriving in sub-zero temperatures to power the heavy-duty plow hydraulics and salt-spreader augers on municipal winter maintenance trucks.
Why Choose the ABER BIF Series?
- Iron-Clad Reliability: The cast iron housing guarantees your pump survives the most brutal job sites and abrasive environments without cracking or deforming.
- Mistake-Proof Installation: The changeable rotation design entirely prevents catastrophic pump destruction during complex field installations.
- Uncompromising Mobile Power: Generates a staggering 450 bar of peak hydraulic force at up to 2500 RPM, giving your heavy fleet the exact power it demands.
